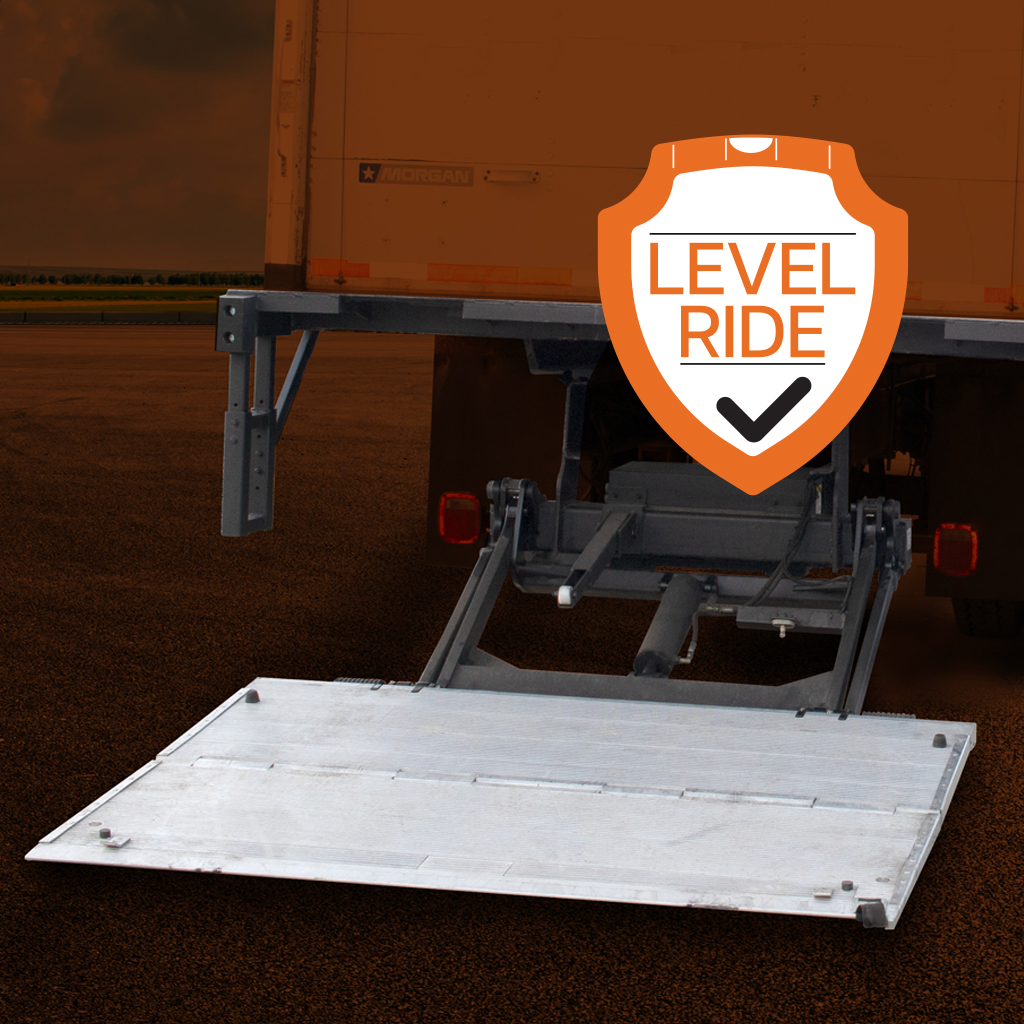

Level Ride Aluminum Tuckunder Lift
Lifting Capacity – Up to 5,500 lbs
Built to Last – Designed to Reduce Road Calls
| LHLP Standard Features | Benefits |
|---|---|
|
Level Ride Lift Gate |
Provides a Level Working Environment for Driver and Freight |
|
Power Down On Demand |
Offers Options to Lower Platform (LHLP4500G/LHLP5500G Only) |
|
Aluminum Platform |
Inhibits Rust While Reducing Weight |
|
Foot Operated Cart Stops x 2 |
Increases Safety by Reducing Accidents |
|
Low P.S.I Due to Larger Piston Area |
Creates Lower Pressure, Reduces Wear and Extends Motor Life |
|
Adjusts to Different Chassis Widths |
Allows Flexibility of Vehicle Installation Options |
|
Pressure Compensated Flow Control |
Steady Hydraulic Pressure for Smooth Operation |
|
Bolt-On Power Pack Enclosure Holds
Pump and Motor |
Easy Installation and Protection from Moisture |
|
Marine Potted Switches |
Watertight Switches – Reduces Electrical Failure |
|
Spring Assisted Opening and Closing |
Ease of Use and Reduces Physical Effort to Operate |
|
Maintenance Minder2 |
Measures and Records Lift Gate Operating Data (LHLP4500/LHLP5500 Standard) |
| Model Number | Vehicle Width | Lifting Capacity | Platform Size | Approximate Weight |
|---|---|---|---|---|
|
LHLP 2500G |
96″ or 102″ |
2,500 lbs |
80″Wx60″D |
770 lbs |
|
LHLP 3500G |
96″ or 102″ |
3,500 lbs |
80″Wx60″D |
795 lbs |
|
LHLP 4500G |
96″ or 102″ |
4,500 lbs |
86″Wx60″D |
1,000 lbs |
|
LHLP 5500G |
96″ or 102″ |
5,500 lbs |
86″Wx60″D |
1,150 lbs |
| Option Number | OPtion Description |
|---|---|
|
103 |
Handheld Remote, Plugs into Receptacle |
|
107 |
Emergency Hand Pump: Up/Down |
|
111 |
Additional Circuit Breaker for Supply Line |
|
117LHLPLED |
LED 4 Light Kit with Surface Mount Boxes |
|
132-3PL |
Plastic Battery Box w/Hold Down Straps (Holds 3 Batteries) |
|
143 |
Safety Cut Off Switch |
|
145 |
6″ Rubber Dock Bumpers |
|
145-12 |
12″ Rubber Dock Bumpers |
|
188 |
Trailer Mounting System |
|
194 |
Threshold Mounting Tube |
|
214 |
Maintenance Minder2 (LHLP 2500G/3500G) |
|
215 |
96″ Floor Extension |
|
215 Bolt On |
96″ Bolt-On Floor Extension |
|
216 |
102″ Floor Extension |
|
216 Bolt On |
102″ Bolt-On Floor Extension |
|
219 |
86″ Wide Platform Upcharge (86″W x 60″D on 2500/3500 Models) |
|
229 |
I.C.C. Bumper D.O.T. Approved |
|
233 |
Step with Threshold Tube |
|
233 LHLP |
Heavy Duty Steps (Non-Adjustable) |
|
233ADJ |
Heavy Duty Steps (Adjustable) |
|
233ADJ-FLEX |
Heavy Duty Wire Rope Steps (Adjustable) |
|
GV |
Galvanized Full Gate |
| Option Number | Option Description |
|---|---|
|
123-NG |
Power Kit: 30′ “2” Gauge Cable – NO Trailer Plug |
|
136-NG |
Power Kit: 35’ “2” Gauge Cable – NO Trailer Plug |
|
257-NG-30 |
Power Kit: 30′ “2” Gauge Cable – Dual Pole |
|
257-NG-45 |
Power Kit: 45′ “2” Gauge Cable – Dual Pole |
|
257-NG-60 |
Power Kit: 60′ “2” Gauge Cable – Dual Pole |
